APM32F405/407 Series
Overview
Performance
Selection Tools
Block Diagram
Documentation
Design Resources

The APM32F405/407 industrial-grade, high-performance MCUs stand out with impressive CPU computing performance, generous storage capacity, and enhanced EMMC capabilities. Designed to meet the requirements of complex program data computing and storage, these MCUs include on-chip PHY high-speed OTG units, a 100Mb Ethernet MAC, and diverse communication peripherals. Together, they provide comprehensive enhancements for diversified control and extensive product connectivity.At present, it can be widely used in PLC, electric welding machine, VFD, EV charging station, inverter and servo driver.

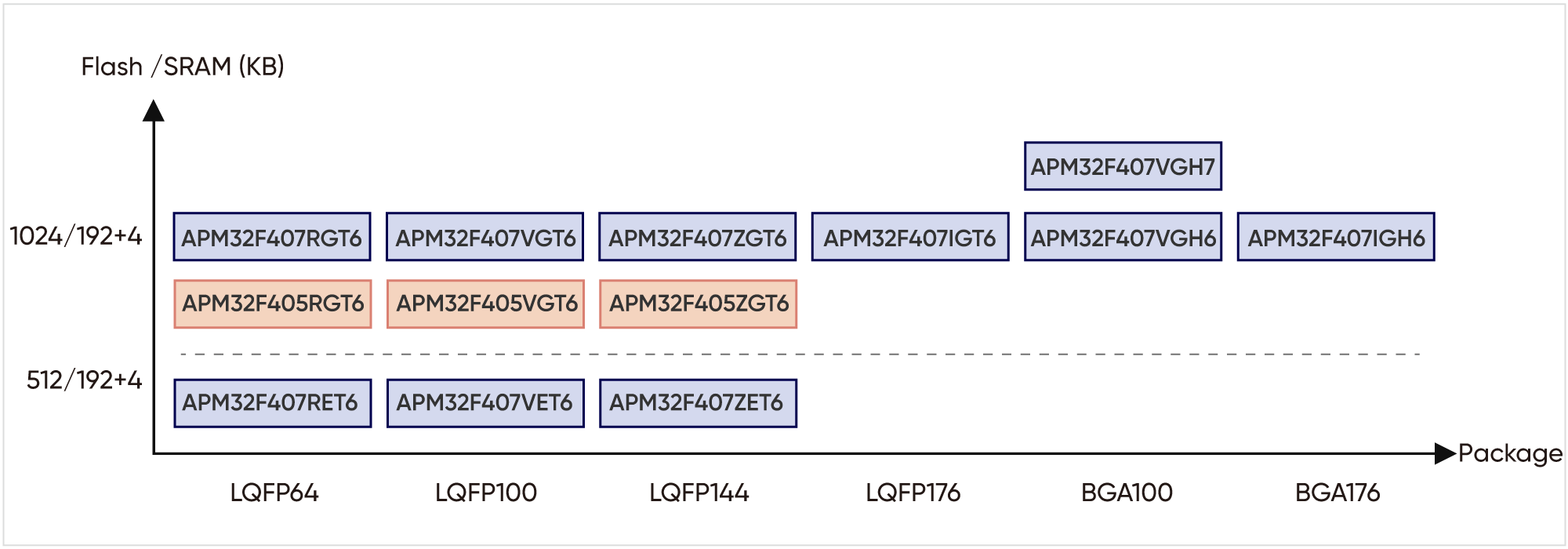

Packaging Roadmap

Performance

System

  • Arm® Cortex® -M4F
  • Working frequency up to 168MHz
  • Support single FPU
  • Support DSP instruction

Memory

  • Flash: 512KB/1MB
  • SRAM: 192KB
  • SDRAM: 2MB(optional)
  • Support external memory extension

Power Consumption

  • VDD/VDDA: 1.8V~3.6V
  • Backup domain power VBAT: 1.65~3.6V
  • Support POR/PDR
  • Support PVD

Timer

  • 16/32-bit universal timer: 8/2
  • 16-bit advanced timer: 2
  • 16-bit basic timer: 2
  • Watchdog timer: 2
  • 24-bit system timer: 1

Analog Peripherals

  • 12-bit ADC: 3, External channel: 24
  • 12-bit DAC: 2

I/O

  • Up to 140 I/Os
  • Map to external interrupt vectors

Debug Mode

  • SWD
  • JTAG

Peripherals

  • U(S)ART: 6
  • I2C : 3
  • SPI : 3
  • I2S: 2
  • DCI: 1(F407)
  • USB OTG: 3
  • CAN: 2
  • SDIO: 1
  • Ethernet: 1(F407)
  • EMMC: 1
  • Support SDRAM

Package

  • LQFP64/100/144/176

Selection Tools

All Products
Reset
Search

Core

M0CP
Coprocessor

Frequency(MHz)

FLASH(KB)

SRAM(KB)

FPU

I/Os

Vmin~Vmax

Package

GPTMR(16-bit)

GPTMR(32-bit)

Advanced
TMR(16-bit)

Basic
TMR

SysTick(24-bit)

IWDT

WWDT

RTC

ADC
cell(12-bit)

ADCchannels(12-bit)

DAC
cell(12bit)

DACchannels(12bit)

Analog
comparator

Operational
Amplifier

TSC
channels

SPI

QSPI

I²S

I²C

U(S)ART

CAN

SDIO

USB
Device

CEC

USB
OTG_FS

USB
OTG_HS

DCI

SMC

DMC

Ethernet

RNG

AES/DES/ TDES

BN/SM2/SM3/SM4

0 total entry

| Download Spreadsheet
Compare
Part
No.
Core
M0CP
Coprocessor
Frequency(MHz)
FLASH(KB)
SRAM(KB)
FPU
I/Os
Vmin~Vmax
Package
GPTMR(16-bit)
GPTMR(32-bit)
Advanced
TMR(16-bit)
Basic
TMR
SysTick(24-bit)
IWDT
WWDT
RTC
ADC
cell(12-bit)
ADCchannels(12-bit)
DAC
cell(12bit)
DACchannels(12bit)
Analog
comparator
Operational
Amplifier
TSC
channels
SPI
QSPI
I²S
I²C
U(S)ART
CAN
SDIO
USB
Device
CEC
USB
OTG_FS
USB
OTG_HS
DCI
SMC
DMC
Ethernet
RNG
AES/DES/ TDES
BN/SM2/SM3/SM4

Block Diagram

Documentation
Format Size
APM32F405xG 407xExG C version Datasheet Data Sheets V1.2 pdf 3.26 MB November 24, 2023
APM32F405xG 407xExG datasheet Data Sheets V1.7 pdf 3.05 MB November 24, 2023
APM32F4xxx User Manual User Manuals V2.2 pdf 11.66 MB November 24, 2023
AN1081_APM32F4xx_APM32F4xx_Quick Start Guide Application Notes V1.0 pdf 1.62 MB August 04, 2022
AN1082_APM32F4xx_APM32F4xx_SDRAM Application Note Application Notes V1.0 pdf 510.86 KB August 04, 2022
AN1083_APM32F4xx_APM32F4xx_ADC Application Note Application Notes V1.0 pdf 899.34 KB February 05, 2024
AN1084_APM32F4xx_IAP Application Note Application Notes V1.0 pdf 1.41 MB August 04, 2022
AN1085_APM32F4xx_APM32F4xx_Download and Burning Application Notes V1.1 pdf 1.12 MB April 03, 2023
AN1086_APM32F4xx_ISP Application Note Application Notes V1.0 pdf 1.69 MB February 09, 2023
AN1087_APM32F4xx_OTG Application Note Application Notes V1.0 pdf 1.07 MB February 09, 2023
AN1088_APM32F4xx Series ETH Transplantation LWIP Application Notes V1.0 pdf 1.27 MB February 09, 2023
AN1091_APM32F4xx_APM32F4xx Series TSensor demo Routine Application Notes V1.0 pdf 516.58 KB April 13, 2023
AN1092_APM32F4xx_SMC_SRAM Application Note Application Notes V1.0 pdf 897.77 KB July 13, 2023
AN1094_APM32F4xx_Application Note of APM32F4xx Flash Simulating EEPROM Application Notes V1.0 pdf 756.55 KB July 13, 2023
AN1101_APM32F4xx_CRC Application Note Application Notes V1.0 pdf 1.04 MB August 08, 2023
AN1104_APM32F4xx Series Software Simulating USART Application Notes V1.0 pdf 1.06 MB September 21, 2023
AN1105_APM32F407 TMR1 Modulated Breathing LED Application Notes V1.0 pdf 914.55 KB October 25, 2023
APM32F407VG MINIBOARD Schematic Diagram Development Board Schematics V1.0.0 pdf 35.93 KB February 06, 2023
APM32F407IG MINIBOARD Schematic Diagram Development Board Schematics V1.0.0 pdf 43.38 KB February 06, 2023
APM32F407IG TinyBoard Schematic Diagram Development Board Schematics V1.0 pdf 43.38 KB November 23, 2023
APM32F407 EVAL Schematic Diagram Development Board Schematics V1.1 zip 2.18 MB December 05, 2023
APM32F407VG MINI Board User Manual Development Board Manuals V1.1 pdf 692.26 KB April 28, 2022
APM32F407IG MINI Board User Manual Development Board Manuals V1.1 pdf 736.47 KB April 28, 2022
APM32F407IG TinyBoard User Manual Development Board Manuals V1.0 pdf 683.51 KB April 06, 2023
APM32F407 EVAL Board User Manual Development Board Manuals V1.0 pdf 1.6 MB February 27, 2023

Design Resources

Hardware Development Tools
Product
APM32F407IG MINI Board Development Board
APM32F407VG MINI Board Development Board
APM32F4xx Evaluation Board Development Board
APM32F407 TINY Board Development Board

Software Development Tools
Format Size
DFU Driver Programmer/DFU V1.0.0 zip 3.3 MB July 05, 2022
GeehyProg SetUp Programmer/DFU V1.0.2 msi 6.58 MB May 06, 2024
APM32_USB_SDK SDKs V1.1 zip 9.45 MB January 05, 2024
APM32F4xx_DAL_SDK SDKs V1.0 zip 53.75 MB November 17, 2023
APM32F4xx_DFP Pack SDKs V1.0.4 pack 6.57 MB December 11, 2023
APM32F4xx_EVAL_SDK SDKs V1.0 zip 4.57 MB June 15, 2022
APM32F4xx_SDK SDKs V1.4 zip 48.42 MB December 12, 2023
