APM32F003 Series

The APM32F003 basic cost-effective industrial-grade MCUs offer a broad temperature range, high precision, low-temperature drift, an 8KV ESD rating, and strong anti-interference capabilities. Integrated with high-speed internal oscillators boasting accuracy within ±3% across the entire range and ±1% after user calibration, these MCUs support TSSOP20, SOP20, and highly compact 3x3mm QFN20 packages, facilitating system integration and reducing the BOM cost.At present, it can be widely used in oil pressure sensor, electric toy, door entry lighting control, educational robot, wireless charger and temperature sensor.

The APM32F003F6U7 is certified with AEC-Q100 Grade 2, meeting automotive reliability standards. It operates from -40°C to 105°C, suitable for complex conditions. Ideal for applications like reverse radar, car control panels, keys, windows, and smart seats.

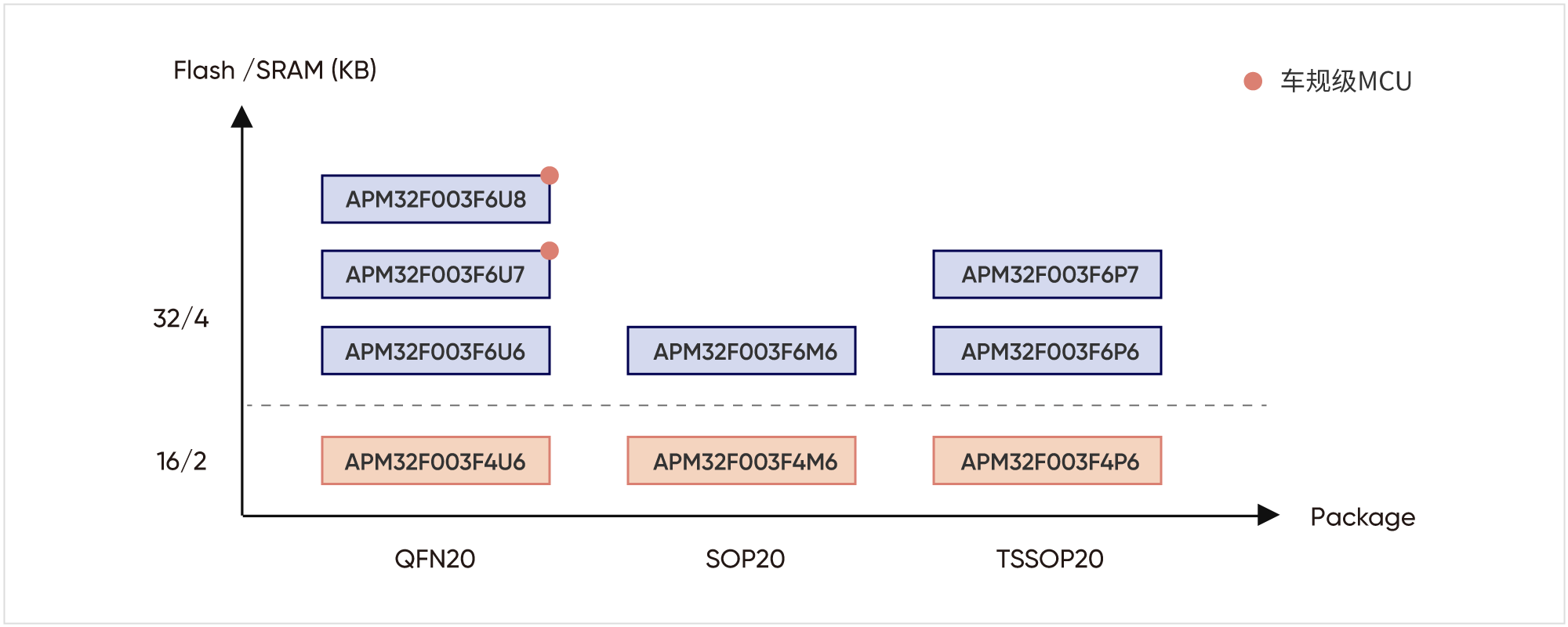

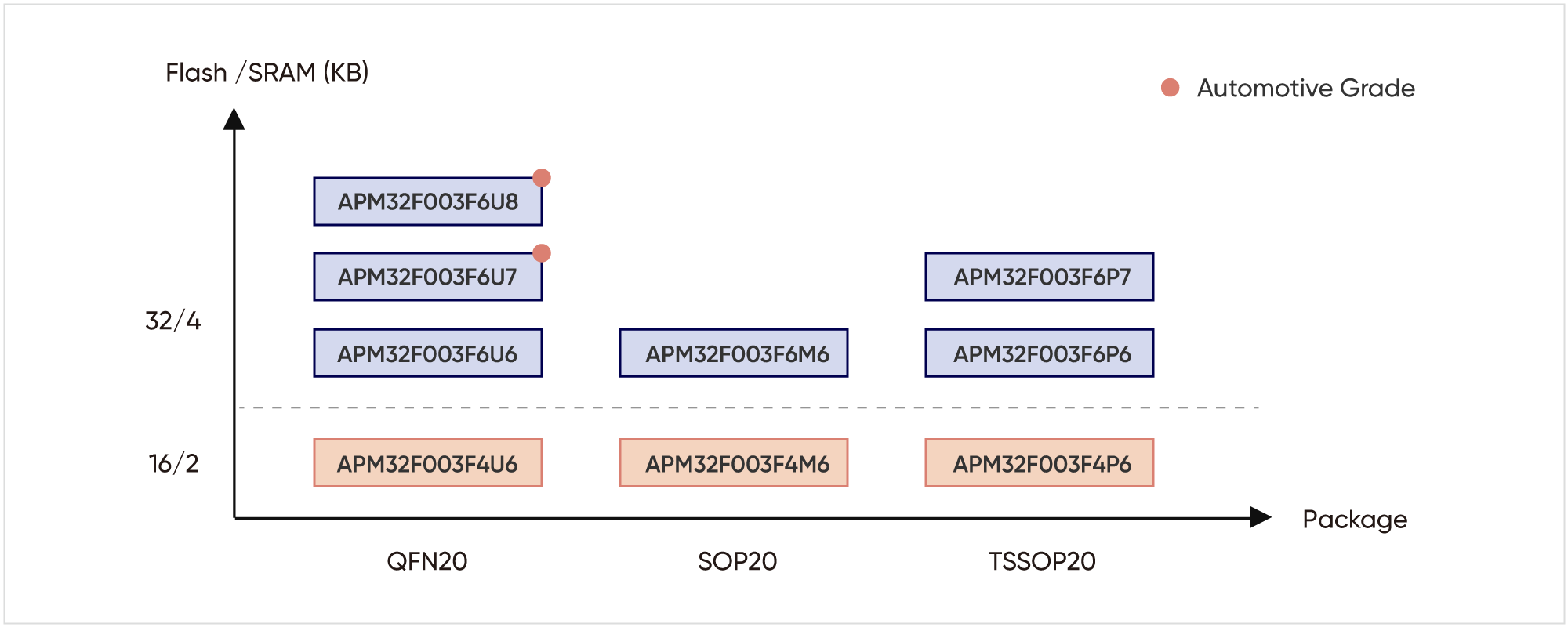

Packaging Roadmap

Performance

System

  • Arm® Cortex®-M0+
  • Frequency 48MHz
  • Temperature range -40℃~+105℃

Memory

  • Flash: 16/32KB
  • SRAM: 2/4KB

Power Consumption

  • Supply voltage: 2.4V~5.5V
  • Support sleep, stop and standby modes

Timers

  • 16-bit universal timer: 1
  • 16-bit advanced timer: 2
  • 8-bit basic timer: 1
  • Watchdog timer: 2
  • SysTick: 1

Analog peripherals

  • 12-bit ADC: 1
  • External channels:8
  • Support differential input

ESD

  • HBM: 8KV
  • CDM: 2KV
  • MM: 550V
  • LU: 200mA

I/O

  • 16 I/O
  • Can be mapped to an external interrupt vector

Security

  • 96-bit non-rewriteable unique identity

Debug Mode

  • SWD

Peripheral

  • USART :3
  • I2C : 1
  • SPI: 1

Package

  • QFN20, TSSOP20, SOP20

Selection Tools

All Products

Core

Frequency(MHz)

FLASH(KB)

SRAM(KB)

FPU

I/Os

Voltage(V)

Package

GPTMR(16bit)

GPTMR(32bit)

Advanced TMR(16bit)

Basic TMR

Systick(24bit)

IWDT

WWDT

RTC

ADC 12-bit Cell

ADC 12-bit Channels

DAC 12-bit Cell

DAC 12-bit Channels

Analog Comparator

TSC (Channels)

SPI

QSPI

I2S

I2C

U(S)ART

CAN

SDIO

USB Device

CEC

USB OTG_FS

USB OTG_HS

SMC

DCI

DMC

Ethernet

RNG

AES/DES/ TDES

BN/ SM3/SM4

Compare
Part No.
Core
Frequency(MHz)
FLASH(KB)
SRAM(KB)
FPU
I/Os
Voltage(V)
Package
GPTMR(16bit)
GPTMR(32bit)
Advanced TMR(16bit)
Basic TMR
Systick(24bit)
IWDT
WWDT
RTC
ADC 12-bit Cell
ADC 12-bit Channels
DAC 12-bit Cell
DAC 12-bit Channels
Analog Comparator
TSC (Channels)
SPI
QSPI
I2S
I2C
U(S)ART
CAN
SDIO
USB Device
CEC
USB OTG_FS
USB OTG_HS
SMC
DCI
DMC
Ethernet
RNG
AES/DES/ TDES
BN/ SM3/SM4

Block Diagram

Documentation

Format Size
APM32F003x4x6 datasheet Data Sheets V2.0 pdf 2.26 MB December 11, 2023
APM32F003x4x6 User Manual User Manuals V1.6 pdf 3.73 MB December 11, 2023
AN1113_APM32F003x4x6 Hardware Development Guide Application Notes V1.0 pdf 677.5 KB September 24, 2024
APM32F003F6 MINI Board Schematic Diagram Development Board Schematics V1.0.0 pdf 19.58 KB January 05, 2020
APM32F003x4x6 Schlib Package Libraries V1.0 schlib 15.5 KB November 18, 2022
APM32F003x4x6 Pcblib Package Libraries V1.0 pcblib 526.5 KB November 18, 2022
APM32F003x4x6 Intlib Package Libraries V1.0 intlib 457.5 KB November 18, 2022
APM32F003F6 MINI Board User Manual Development Board Manuals V1.1 pdf 668.19 KB April 28, 2022
APM32F003x6 Errata Sheet Errata Sheets V2.0 pdf 384.65 KB September 24, 2024
