APM32F051 Series

The APM32F051 basic extended industrial-grade MCUs provide high integration, good portability, wide compatibility, and robust extended control functions. Featuring a built-in 5-channel DMA controller, they ensure smooth LCD operation by preventing freezing and enabling timely content refresh. The integrated TSC touch sensing controller allows advanced control of audio and video smart terminals at high cost-effectiveness, while the built-in HDMI CEC controller provides hardware support for consumer electronics control protocols. Additionally, they are certified with IEC 60730.At present, it can be widely used in coffee machines, smart toilets, in-vehicle T-box, computer peripherals, smart fingerprint locks and mini projectors.

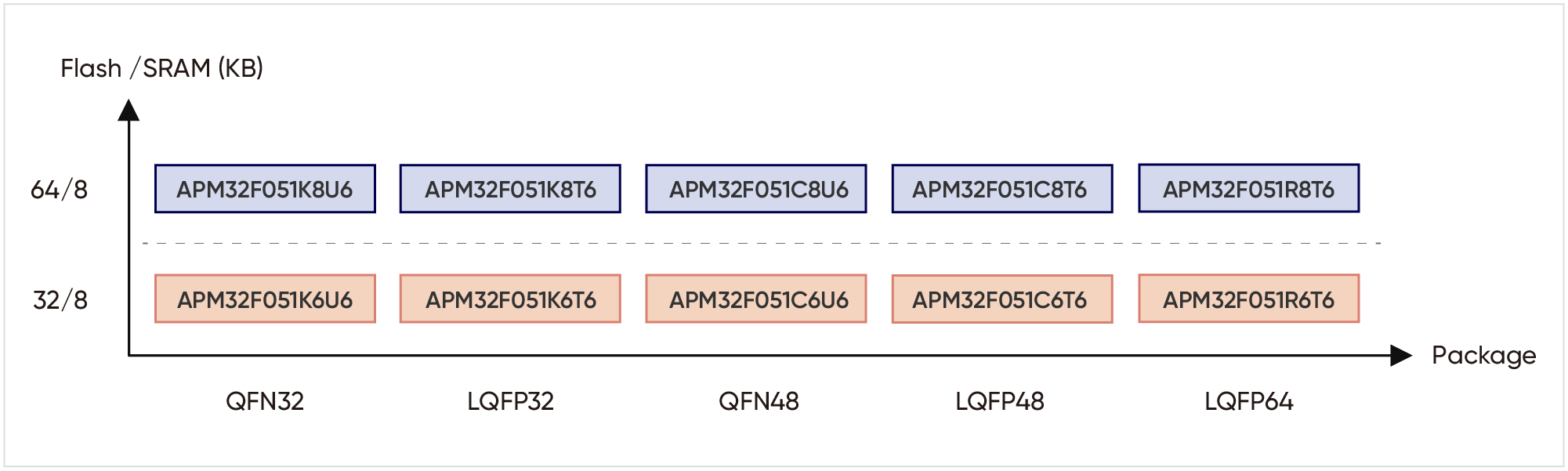

Packaging Roadmap

Performance

System

  • Arm® Cortex®-M0+
  • Frequency 48MHz
  • Temperature range:-40℃~+105℃
  • Built in RTC
  • 5-channel DMA

Memory

  • Flash: 32-64KB
  • SRAM: 8KB

Power Consumption

  • Supply voltage: 2.0V~3.6V
  • Built in programmable voltage monitor
  • Support sleep, stop and standby modes
  • VBat supports RTC and backup register power supply

Timer

  • 16/32-bit GPTMR: 5/1
  • 16-bit basic timer: 1
  • 16-bit advanced timer: 1
  • Watchdog timer: 2
  • SysTick: 1

Analog peripherals

  • 12-bit ADC:1, external channels: 16
  • 12-bit DAC:1
  • Programmable analog comparator: 2
  • TSC: 18

I/O

  • Up to 55 I/O
  • Can be mapped to 16 external interrupt controller
  • Tolerates 5V signal input

Security

  • 96-bit non-rewriteable unique identity
  • Supporting CRC calculation unit

Debug Mode

  • SWD

Peripheral

  • USART : 2
  • I2C : 2
  • SPI : 2
  • I2S: 1
  • HDMI CEC

Package

  • LQFP32/48/64
  • QFN32/48
