APM32A091 Series
Overview
Performance
Selection Tools
Block Diagram
Documentation
Design Resources

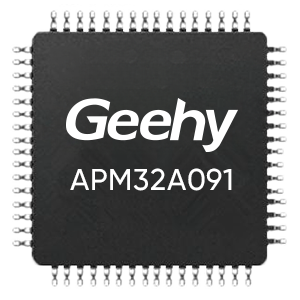

Based on the Arm® Cortex®-M0+ core, the APM32A091 highly cost-effective automotive-grade MCUs deliver low cost, low power consumption, high integration, and robust communication interfaces. Tailored to meet diverse automotive application requirements, these MCUs introduce two programmable analog comparators, one HDMI CEC, and up to 18 capacitive sensing channels, ensuring precise recognition of touch input commands.At present, it can be widely used in OBC, T-box, ignition device, window lifter, car dashboard, power liftgate and HVAC system.

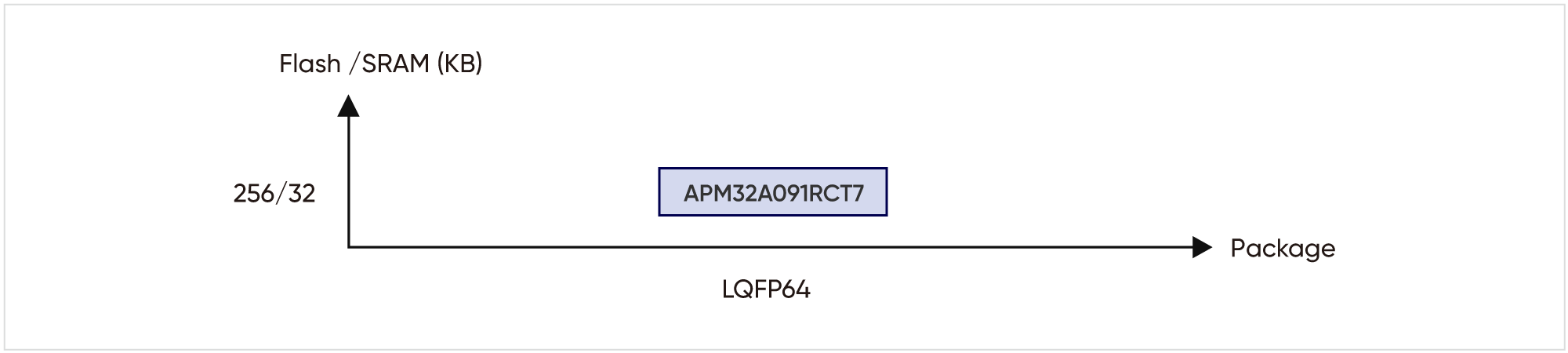

Packaging Roadmap

Performance

System

  • Arm® Cortex®-M0+
  • Operates at frequency of 48MHz

Memory

  • Flash 256KB
  • SRAM 32KB

Power Supply and Reset

  • Supply voltage：2.0V~3.6V
  • Support programmable voltage monitor
  • Support sleep, stop, standby modes
  • Support POR/PDR

Timer

  • 16/32-bit universal timer: 5/1 16-bit advanced timer: 1 16-bit basic timer: 2 Watchdog timer: 2 24-bit SysTick: 1

Analog peripherals

  • 12-bit ADC: 1; external channel: 16
  • 12-bit DAC: 1; channel: 2
  • Programmable analog comparator: 2
  • HDMI CEC: 24

I/Os

  • 52 I/Os
  • All mappable on external interrupt vectors

Peripheral

  • USART: 8
  • I2C: 2
  • SPI: 2
  • I2S: 2
  • CAN: 1
  • HDMI CEC

Certification level

  • AEC-Q100 Grade 1

Package

  • LQFP64
