APM32F103 Series
Overview
Performance
Selection Tools
Block Diagram
Documentation
Design Resources

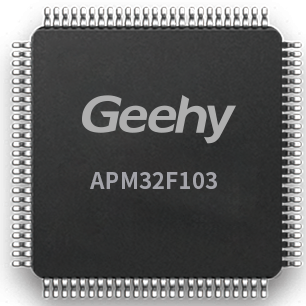

The APM32F103 popular mainstream industrial-grade MCUs deliver high computing performance, efficient power consumption, and ample storage space. They come with a built-in LCD interface compatible with 8080/6800 modes. These MCUs have a broad customer application base and are certified for both IEC 61508 and IEC 60730, meeting high-reliability standards for industrial-grade applications.At present, it can be widely used in encoder, motor control, access control system, HVAC board, refrigerator compressor and ticket printer.

The APM32F103RCT7 is certified with AEC-Q100 Grade 2, meeting automotive reliability standards. It operates from -40°C to 105°C, suitable for complex conditions. Ideal for applications like HUD, head flow light, blind spot monitor, onboard central control, smart cabin, power liftgate, fault diagnostic instrument and fuel anti-theft alarm.

Packaging Roadmap

Performance

System

  • Arm® Cortex®-M3
  • Frequency 96MHz
  • Support FPU Temperature range -40℃~+105℃
  • Support IEC61508 SIL2
  • Support USB-IF

Memory

  • Flash: 64-512KB
  • SRAM: 20-128KB

Power Consumption

  • Supply voltage: 2.0V~3.6V
  • Built in programmable voltage monitor
  • Support sleep, stop and standby modes
  • VBAT supports RTC and backup register power supply

Timer

  • 16-bit universal timer: 4
  • 16-bit advanced timer: 2
  • Watchdog timer: 2
  • SysTick: 1

Analog peripherals

  • 12-bit ADC:3,external channels: 16
  • Conversion range: 0~VDAA
  • Internal Temperature Sensor: 1

I/Os

  • Up to 112 I/Os
  • All I/Os can be mapped to 16 external interrupt controller
  • Almost all I/O tolerates 5V signal input

Security

  • 96-bit non-rewriteable unique identity
  • Support CRC cells

Debug Mode

  • SWD and JTAG interface

Peripheral

  • USART: 3+2
  • I²C: 2
  • SPI: 2
  • I2S: 3
  • USB: 1
  • CAN: 2
  • Support using both USB and CAN interfaces

Package

  • LQFP48/64/100
  • QFN36

Selection Tools

All Products
Reset
Search

Core

M0CP
Coprocessor

Frequency(MHz)

FLASH(KB)

SRAM(KB)

FPU

I/Os

Vmin~Vmax

Package

GPTMR(16-bit)

GPTMR(32-bit)

Advanced
TMR(16-bit)

Basic
TMR

SysTick(24-bit)

IWDT

WWDT

RTC

ADC
cell(12-bit)

ADCchannels(12-bit)

DAC
cell(12bit)

DACchannels(12bit)

Analog
comparator

Operational
Amplifier

TSC
channels

SPI

QSPI

I²S

I²C

U(S)ART

CAN

SDIO

USB
Device

CEC

USB
OTG_FS

USB
OTG_HS

DCI

SMC

DMC

Ethernet

RNG

AES/DES/ TDES

BN/SM2/SM3/SM4

0 total entry

| Download Spreadsheet
Compare
Part
No.
Core
M0CP
Coprocessor
Frequency(MHz)
FLASH(KB)
SRAM(KB)
FPU
I/Os
Vmin~Vmax
Package
GPTMR(16-bit)
GPTMR(32-bit)
Advanced
TMR(16-bit)
Basic
TMR
SysTick(24-bit)
IWDT
WWDT
RTC
ADC
cell(12-bit)
ADCchannels(12-bit)
DAC
cell(12bit)
DACchannels(12bit)
Analog
comparator
Operational
Amplifier
TSC
channels
SPI
QSPI
I²S
I²C
U(S)ART
CAN
SDIO
USB
Device
CEC
USB
OTG_FS
USB
OTG_HS
DCI
SMC
DMC
Ethernet
RNG
AES/DES/ TDES
BN/SM2/SM3/SM4

Block Diagram

Documentation
Format Size
APM32F103RCT7 datasheet Data Sheets V1.2 pdf 2.23 MB March 13, 2023
APM32F103x4x6x8 datasheet Data Sheets V1.2 pdf 3.08 MB November 11, 2022
APM32F103xB D version Datasheet Data Sheets V1.9 pdf 3.6 MB February 02, 2024
APM32F103xB E version Datasheet Data Sheets V1.1 pdf 3.21 MB January 05, 2024
APM32F103xC datasheet Data Sheets V1.7 pdf 2.84 MB March 07, 2023
APM32F103xDxE Datasheet Data Sheets V2.0 pdf 3.14 MB January 05, 2024
APM32F103x4x6x8xB User Manual User Manuals V1.8 pdf 5.76 MB November 16, 2023
APM32F103xCxDxE User Manual User Manuals V1.6 pdf 7.57 MB November 16, 2023
AN1102_APM32F103 Software I2C Reading and Writing EEPROM Application Notes V1.0 pdf 1.15 MB September 21, 2023
AN1103_The APM32F103 software simulates SPI to read and write external Flash Application Notes V1.0 pdf 1.13 MB September 21, 2023
APM32F103ZE MINIBOARD Schematic Diagram Development Board Schematics V1.0.0 pdf 38.2 KB August 10, 2021
APM32F103VC MINIBOARD Schematic Diagram Development Board Schematics V1.0.0 pdf 35.61 KB November 23, 2021
APM32F103VB MINI Board Schematic Diagram Development Board Schematics V1.0.0 pdf 36.87 KB November 18, 2020
APM32F103R8 MINIBOARD Schematic Diagram Development Board Schematics V1.0.0 pdf 33.74 KB August 20, 2021
APM32F103xDxE Schlib Package Libraries V1.0 schlib 30.5 KB December 04, 2023
APM32F103xDxE Pcblib Package Libraries V1.0 pcblib 115.5 KB December 04, 2023
APM32F103xDxE Intlib Package Libraries V1.0 intlib 23 KB December 04, 2023
APM32F103x4x6x8xB Schlib Package Libraries V1.0 schlib 51.5 KB November 02, 2022
APM32F103x4x6x8xB Pcblib Package Libraries V1.0 pcblib 109.5 KB November 02, 2022
APM32F103x4x6x8xB Intlib Package Libraries V1.0 intlib 21.5 KB November 02, 2022
APM32F103ZE MINI Board User Manual Development Board Manuals V1.1 pdf 718.47 KB April 28, 2022
APM32F103VC MINI Board User Manual Development Board Manuals V1.1 pdf 722.67 KB March 23, 2023
APM32F103VB MINI Board User Manual Development Board Manuals V1.1 pdf 716.75 KB April 28, 2022
APM32F103R8 MINI Board User Manual Development Board Manuals V1.1 pdf 715.87 KB April 28, 2022

Design Resources

Hardware Development Tools
Product

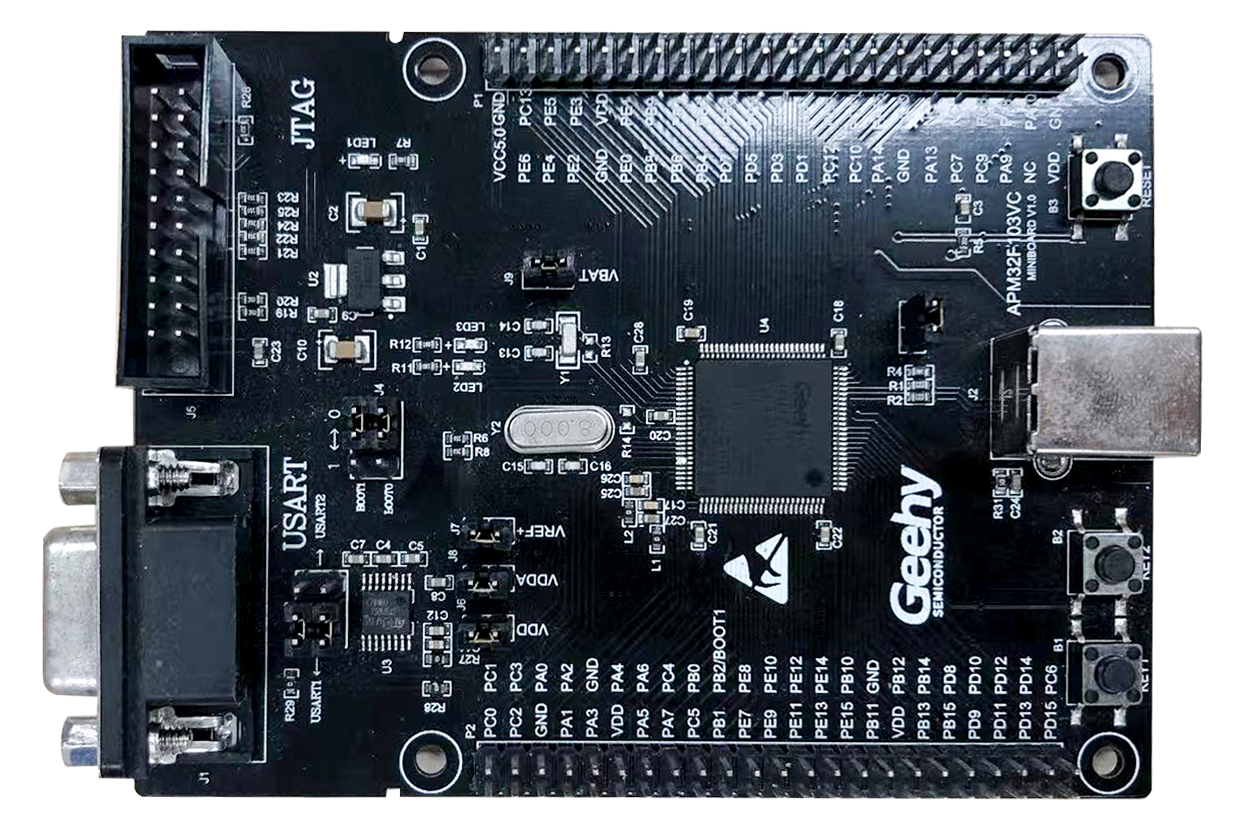

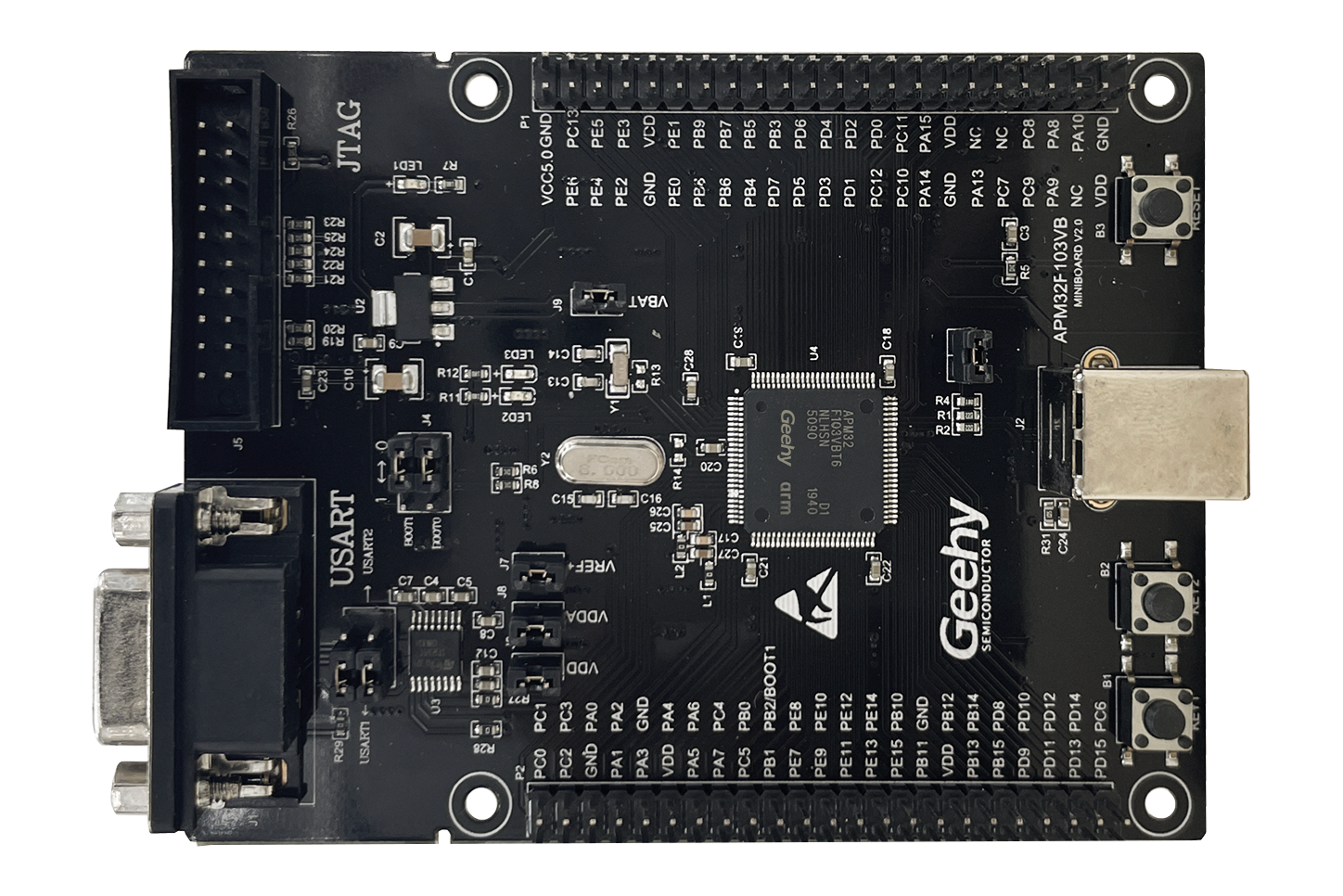

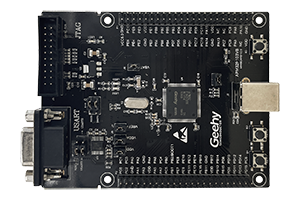

APM32F103VB MINI Board Development Board

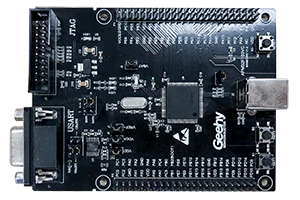

APM32F103VC MINI Board Development Board
APM32F103ZE MINI Board Development Board

Software Development Tools
Format Size
GeehyProg SetUp Programmer/DFU V1.0.2 msi 6.58 MB May 06, 2024
APM32_USB_SDK SDKs V1.1 zip 9.45 MB January 05, 2024
APM32F10x_SDK SDKs V1.8 zip 90.24 MB December 22, 2023
APM32F1xx_DFP Pack SDKs V1.1.0 pack 4.31 MB December 22, 2023
