G32R501 Series

The G32R501 series delivers outstanding real-time control capabilities with its Arm® Cortex®-M52 core, based on the Arm v8.1-M architecture and enhanced by the Zidian math instruction extension. With support for Arm HeliumTM technology via the MVE (vector extension) solution, this series integrates advanced sensing, control peripherals, and a flexible interconnection system. Its wide operating temperature range (-40°C to 125°C), suitable for a wide range of fields such as new energy inverters, commercial power supplies, industrial automation, and new energy vehicles.

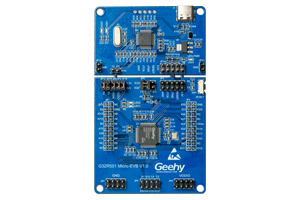

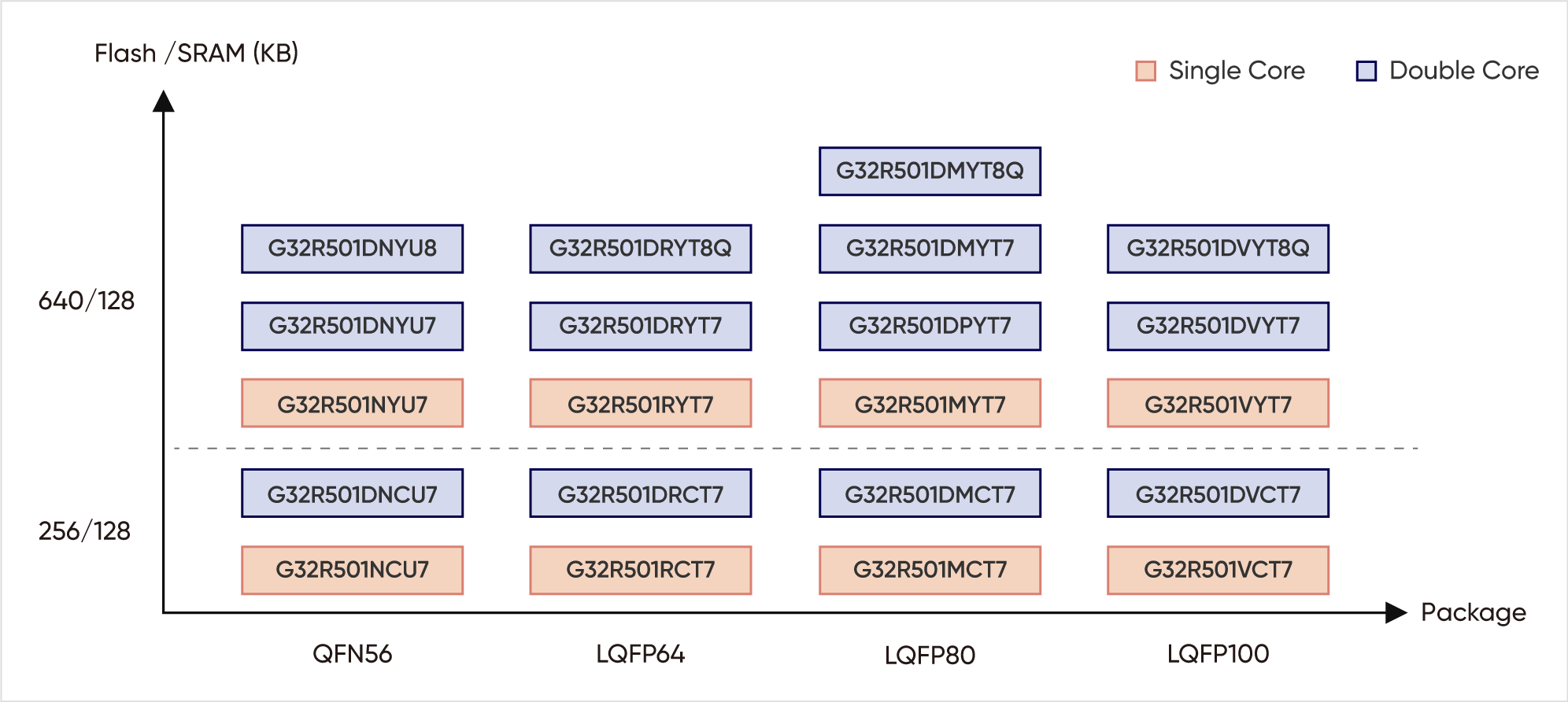

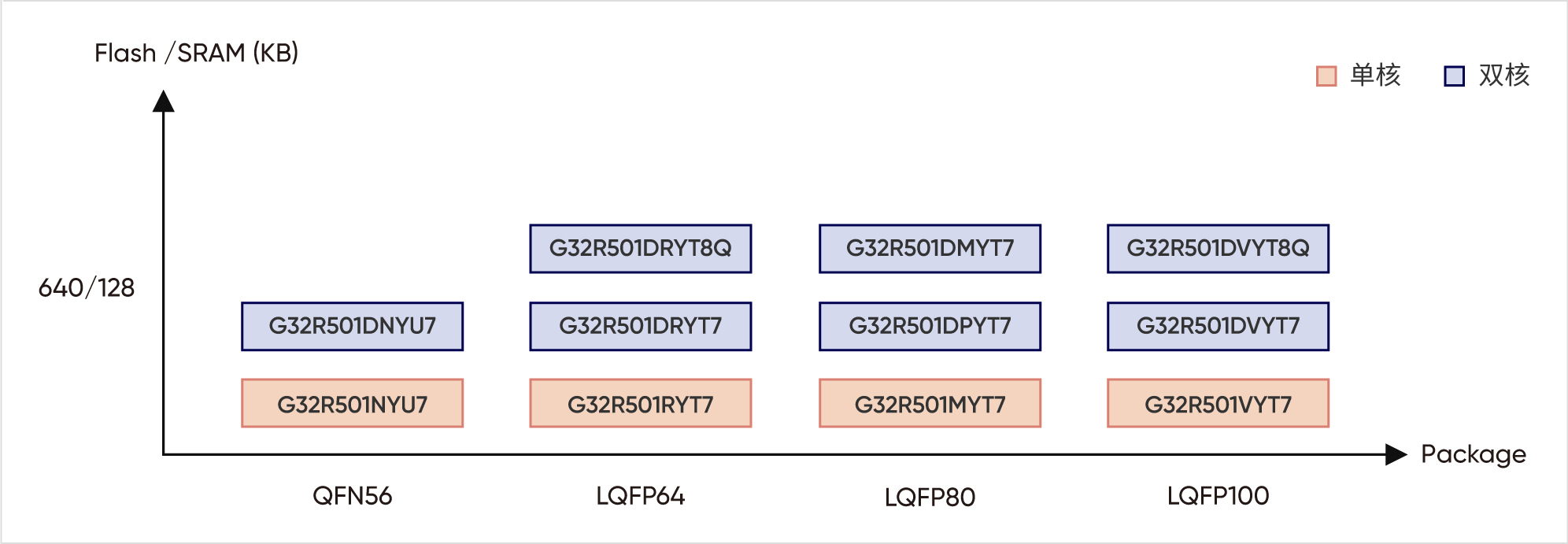

Packaging Roadmap

Performance

System

  • Arm® Cortex®-M52(dual-core)
  • Operating frequency: 250 MHz
  • Zidian math instruction extension
  • Arm Helium™ technology

Memory

  • Flash 640KB
  • SRAM 128KB
  • Support Flash ECC, on-chip memory parity protection, dual-zone security

Clock and system control

  • Internal zero-pin 10MHz oscillators ×2
  • On-chip crystal oscillator and external clock input Window watchdog timer module
  • Clock loss detection circuit

Analog system

  • 3.45MSPS 12-bit ADC ×3
  • T-sensor ×1
  • 12-bit buffer DAC outputs ×2
  • COMP with 12-bit reference DAC ×7

Control peripherals

  • Enhanced capture (CAP) modules ×7
  • 150ps PWM channels ×16ch
  • Enhanced quadrature encoder pulse (QEP) ×2
  • Σ-Δ filter module (SDF) ×4
  • Flexible logic block (FLB) ×4

Communication peripherals

  • UART×2
  • CAN×2
  • I2C×1
  • SPI×2
  • LIN×1
  • PMBus×1
  • QSPI×1

Security and Reliability

  • Two-zone security protection
  • Lost clock detection circuit
  • Code security module
  • IEC 61508 Certification (certification is ongoing)
  • AEC-Q100 Certification (certification is ongoing)

Package

  • QFN56, LQFP100/80/64

Selection Tools

All Products

Core

Frequency(MHz)

FLASH(KB)

SRAM(KB)

FPU

I/Os

Voltage(V)

Package

GPTMR(32bit)

WWDT

ADC 12-bit Cell

ADC 12-bit Channels

DAC 12-bit Cell

SPI

QSPI

I2C

CAN

USB Device

Operating Temperature(℃)

UART

Zidian Math
Instruction Extension

DMA Channels

NMIWD

T-sensor

COMP(DAC 12-bit Cell Embedded)

CAP(HRCAP)

PWM (HRPWM Channels)

QEP

SDF Channels

LIN

PMBus

Compare
Part No.
Core
Frequency(MHz)
FLASH(KB)
SRAM(KB)
FPU
I/Os
Voltage(V)
Package
GPTMR(32bit)
WWDT
ADC 12-bit Cell
ADC 12-bit Channels
DAC 12-bit Cell
SPI
QSPI
I2C
CAN
USB Device
Operating Temperature(℃)
UART
Zidian Math
Instruction Extension
DMA Channels
NMIWD
T-sensor
COMP(DAC 12-bit Cell Embedded)
CAP(HRCAP)
PWM (HRPWM Channels)
QEP
SDF Channels
LIN
PMBus
G32R501DPYT7Arm® Cortex®-M52250640128443.1~3.6LQFP803316221120-40~1052617(14)7(2)16(16)2411
G32R501MCT7Arm® Cortex®-M52250256128443.1~3.6LQFP803316221120-40~1052617(14)7(2)16(16)2411
G32R501MYT7Arm® Cortex®-M52250640128443.1~3.6LQFP803316221120-40~1052617(14)7(2)16(16)2411
G32R501NCU7Arm® Cortex®-M52250256128253.1~3.6QFN563314221120-40~1052616(12)7(2)16(16)2211
G32R501NYU7Arm® Cortex®-M52250640128253.1~3.6QFN563314221120-40~1052616(12)7(2)16(16)2211
G32R501RCT7Arm® Cortex®-M52250256128263.1~3.6LQFP643316221120-40~1052617(14)7(2)16(16)2211
G32R501RYT7Arm® Cortex®-M52250640128263.1~3.6LQFP643316221120-40~1052617(14)7(2)16(16)2211
G32R501VCT7Arm® Cortex®-M52250256128423.1~3.6LQFP1003331221120-40~1052617(14)7(2)16(16)2411
G32R501VYT7Arm® Cortex®-M52250640128423.1~3.6LQFP1003331221120-40~1052617(14)7(2)16(16)2411
G32R501DMCT7Dual Arm® Cortex®-M52250256128443.1~3.6LQFP803316221120-40~1052617(14)7(2)16(16)2411
G32R501DMYT7Dual Arm® Cortex®-M52250640128443.1~3.6LQFP803316221120-40~1052617(14)7(2)16(16)2411
G32R501DMYT8QDual Arm® Cortex®-M52200640128443.1~3.6LQFP803316221120-40~1252617(14)7(2)16(16)2411
G32R501DNCU7Dual Arm® Cortex®-M52250256128253.1~3.6QFN563314221120-40~1052616(12)7(2)16(16)2211
G32R501DNYU7Dual Arm® Cortex®-M52250640128253.1~3.6QFN563314221120-40~1052616(12)7(2)16(16)2211
G32R501DNYU8Dual Arm® Cortex®-M52200640128253.1~3.6QFN563314221120-40~1252616(12)7(2)16(16)2211
G32R501DRCT7Dual Arm® Cortex®-M52250256128263.1~3.6LQFP643316221120-40~1052617(14)7(2)16(16)2211
G32R501DRYT7Dual Arm® Cortex®-M52250640128263.1~3.6LQFP643316221120-40~1052617(14)7(2)16(16)2211
G32R501DRYT8QDual Arm® Cortex®-M52200640128263.1~3.6LQFP643316221120-40~1252617(14)7(2)16(16)2211
G32R501DVCT7Dual Arm® Cortex®-M52250256128423.1~3.6LQFP1003331221120-40~1052617(14)7(2)16(16)2411
G32R501DVYT7Dual Arm® Cortex®-M52250640128423.1~3.6LQFP1003331221120-40~1052617(14)7(2)16(16)2411
G32R501DVYT8QDual Arm® Cortex®-M52200640128423.1~3.6LQFP1003331221120-40~1252617(14)7(2)16(16)2411
