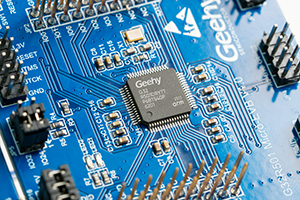

The G32R501 Micro-EVB is a compact evaluation and development platform based on Geehy's G32R501 real-time MCU. It features the G32R501DRYT7 (LQFP64), built on the Arm® Cortex®-M52 core with dual-core parallel processing for enhanced real-time performance. The board integrates a Geehy-Link debugger for streamlined development and supports expansion via standard pin headers, enabling easy connection to a Geehy motor power board for rapid motor control evaluation.
Arm® Cortex®-M52 dual-core; Operating frequency:250MHz
40KB Flash, 128KB SRAM
USB with power Output (Type-C): 1
Geehy-Link: 1
SWD: 1
RESET KEY: 1
LEDs: 2
GPIOs: 19
ADC channels: 16
40-pin ExpandPack: 1
|
|
|
Format | Size |
|
|---|---|---|---|---|---|
| G32R501 Micro-EVB User Manual | Development Board Manual | V1.0 | 600.89 KB | June 12, 2025 | |
| G32R501 Micro-EVB Schematic Diagram | Development Board Schematic | V1.0 | 146.64 KB | June 20, 2025 | |
| G32R501_SDK | SDKs | V1.1.0 | zip | 42.57 MB | May 07, 2025 |
| G32R501_DFP pack | SDKs | V1.0.1 | pack | 1.92 MB | April 30, 2025 |
