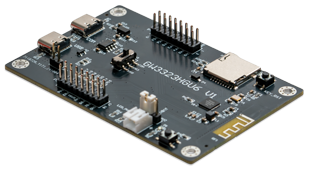

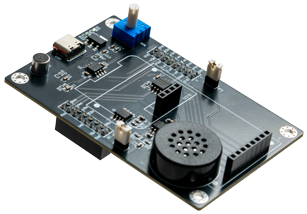

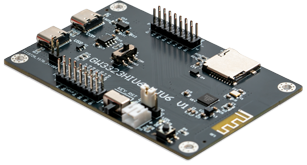

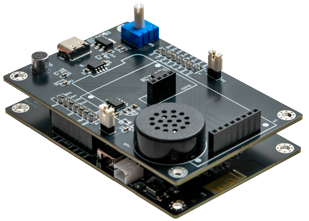

The GW3323 EVAL Board offers a modular core board and an optional expansion board to meet diverse development needs. Two core board options, GW3323HGU6, and GW3323HIU6/HJU6, integrate key interfaces such as custom buttons, a MicroSD (TF) slot, USB communication, chip programming, and battery power. The expansion board adds an LCD socket, OLED socket, speaker, microphone, and USB-to-UART interface for enhanced application development and testing.
Core: 32-bit RISC-V architecture, up to 160 MHz
Memory: 1MB/4MB/8MB Flash, 256 KB SRAM
LEDs: 2
Keys: 2
GPIOs: 40
Full-speed USB
Compatible with 5V or 3.7V lithium batteries
MicroSD (TF) Card Slot: 1
Debug and Programming Interface: 1
|
|
|
Format | Size |
|
|---|---|---|---|---|---|
| GW3323 EVAL Expand Board Schematic Diagram | Development Board Schematics | V1.0 | 259.51 KB | December 23, 2024 | |
| GW3323HGU6 EVAL Board Schematic Diagram | Development Board Schematics | V1.0 | 340.52 KB | December 23, 2024 | |
| GW3323HIU6&HJU6 EVAL Board Schematic Diagram | Development Board Schematics | V1.0 | 344.15 KB | December 23, 2024 | |
| GW3323 Pcblib | Package Libraries | V1.0 | PcbLib | 44.5 KB | December 23, 2024 |
| GW3323 Schlib | Package Libraries | V1.0 | SchLib | 9.5 KB | December 23, 2024 |
