Through cutting-edge technological innovation and optimization, Geehy proudly presents its mass production solution featuring the APM32F035 motor control dedicated MCU. This revolutionary solution incorporates sensor-based Field-Oriented Control (FOC), offering a streamlined peripheral circuit, reduced energy consumption, and minimized noise. It also experiences a smoother startup and shorter braking time with enhanced efficiency.

Overview of APM32F035 Strong Magnetic Stirrer Solution

The APM32F035 MCU serves as the central controller in this motor control application. Responsible for collecting Hall signals, current, and voltage inputs, the MCU executes motor control logic, receives commands, and provides real-time feedback on motor status. Detecting Hall signals, bus voltage, and motor phase current internally, the APM32F035 generates six sets of complementary PWM signals via Timer1, ensuring efficient, smooth, and quiet motor operation. Importantly, the APM32F035 includes four built-in operational amplifiers, eliminating the need for an external one during motor phase current sampling.

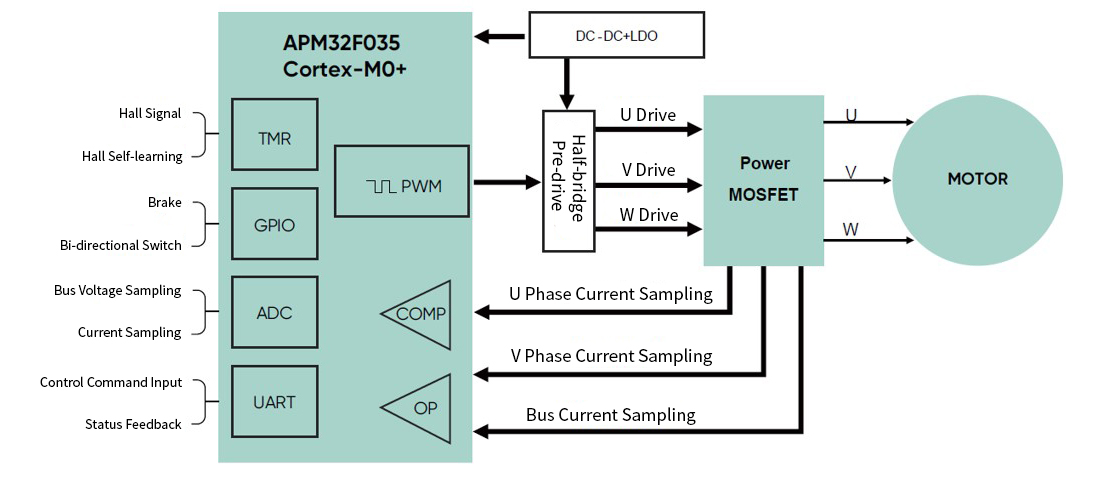

Block Diagram of APM32F035 Strong Magnetic Stirrer Solution

Key Features of APM32F035 Strong Magnetic Stirrer Solution

▪ Utilizes Hall FOC vector control, significantly reducing operational noise.

▪ Integrates multiple operational amplifiers and comparators, simplifying the circuit and reducing interference.

▪ Hall self-learning and angle compensation functions achieve absolute zero-degree control, enhancing motor operating efficiency.

▪ Enables reverse-free startup, stepless speed regulation, stable full-speed operation, and supports ultra-low frequency (0.83Hz) operation.

▪ Offers fault indication, freedom to switch between forward and reverse, and software and hardware speed adjustment.

▪ Provides input over/subvoltage, software and hardware overcurrent, phase loss, stall protection, and Hall anomaly detection functions.

Key Advantages of APM32F035 Motor Control Specialized MCU

▪ Arm® Cortex®-M0+ core with a high main frequency of 72MHz.

▪ Flash 64KB, SRAM 10KB, BootLoader 4KB.

▪ M0CP coprocessor: hardware configuration includes shifting, 32-bit/32-bit divider, square root, trigonometric functions, achieving more complex calculations in a shorter processing time.

▪ Analog peripherals: OP-AMP×4, COMP×2, 12-bit ADC×1.

▪ Digital peripherals: SPI×1, U(S)ART×2, I2C×1, CANx1, DMA.

▪ Motor-dedicated PWM supports complementary braking and can be linked with M0CP.
