A reversing radar typically consists of several key components, including a main control chip, reversing radar sensor, an ultrasonic transmitting and receiving circuit, an alarm circuit, and a display circuit. With ultrasonic distance measurement and features of high-performance, low power consumption, the latest reversing radar solution based on the APM32A407 series of automotive-grade MCUs enables rich, powerful, and convenient reverse radar recording functions.

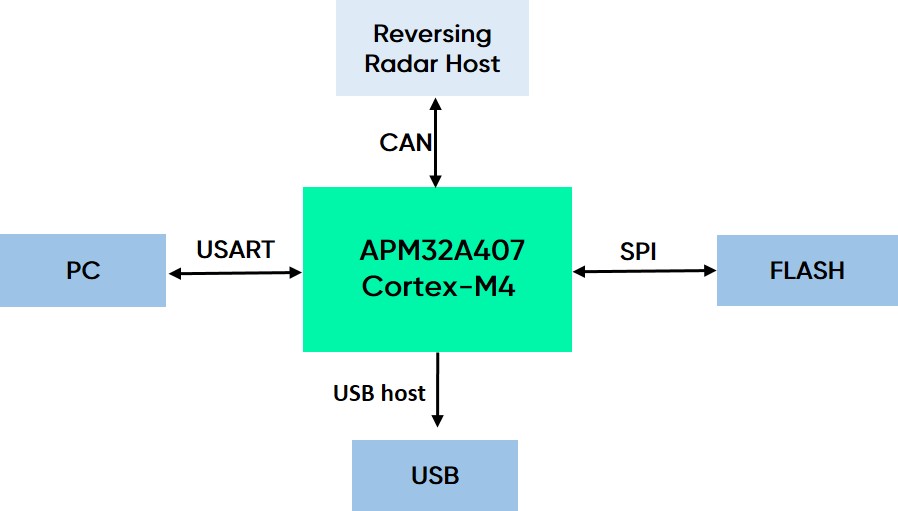

APM32A407 Reversing Radar Advantages

•  Support radar signal collection and processing, enabling it to accurately detect and locate obstacles near the vehicle body.

•  Communicate to the reversing radar host via a CAN bus, which collects multi-channel radar data from multiple sensors.

•  Radar data can be saved in the external Flash through SPI.

•  Control commands can be sent via USART to the reversing radar system for configuration and calibration.

•  Realize USB HOST through USB OTG, read and write Flash data from external USB storage devices.

The high-performance APM32A407 series of MCUs stands out with its rich on-chip resources, peripherals, and low power consumption features. With these MCUs, the reversing radar system can achieve more functions with simple peripheral circuitry, reducing costs and enhancing the overall reliability of the system. Furthermore, the SWD/JTAG debug mode allows for convenient on-chip flash memory programming and software upgrades.

Key Features of APM32A407 Automotive-grade MCUs

•  Arm® Cortex®-M4 core, operates at 168MHz and supports single-precision FPU, as well as enhanced DSP instructions.

•  Flash 1024KB, SRAM 192+4KB, providing large storage to meet the data operation of complex programs.

•  Support five low-power modes: Sleep, Stop, and Standby

•  U(S)ART*6, I2C*3, SPI*3, CAN*2, USB OTG*3, SDIO, DCI, Ethernet, and other peripherals

•  Three 12-bit ADCs, up to 21 external channels, two 2-channel 12-bit DACs

•  Certified the AEC-Q100 Grade1 and Grade 2, the operating temperature covers -40℃~125℃

•  Support BN, SM3, and SM4 national secret algorithm

•  LQFP100/144 package

As the field of automotive electronics continues to evolve, Geehy remains committed to increasing its R&D investment to deliver innovative and high-performance solutions that meet the needs of customers. As the APM32A full series of automotive-grade MCUs have proven to be a valuable resource for product development, it allows customers to create more functional and higher-performing products cost-effectively.
